Description:
Fiber optic cables designed for use in ducts, providing high performance in various environments.

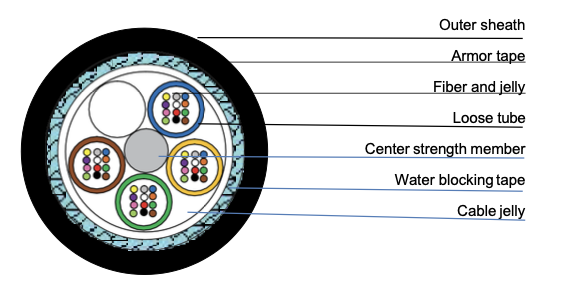

Cross Section Drawing:
Features:
- S-Z stranded (up to 288 fibers) or central tube structure (up to 24 fibers)
- Metallic, non-metallic armored or unarmored
- Steel wire or FRP for center strength member
- Good water penetration, mechanical and environmental performance
- With simple structure easy to install
- PE or LSZH sheath materials
- In accordance with IEC, ITU and EIA standards
Specifications:
Unarmored, Loose Tube Stranded
| Cable Type | Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Nominal Pulling Force (N) | Nominal Crush Resistance (N/10cm) |
|---|---|---|---|---|---|
| IFC-24-FD-S1 | 24 | 9.5 | 75 | 1000 | 1000 |
| IFC-24-SD-S1 | 24 | 8.7 | 70 | 1500 | 1000 |
Metallic Armored, Loose Tube Stranded
| Cable Type | Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Nominal Pulling Force (N) | Nominal Crush Resistance (N/10cm) |
|---|---|---|---|---|---|
| IFC-24-FStD-S1 | 24 | 10.7 | 115 | 1000 | 2000 |
| IFC-24-SStD-S1 | 24 | 9.9 | 110 | 1500 | 2000 |
| IFC-24-FAID-S1 | 24 | 10.5 | 95 | 1000 | 1500 |
| IFC-24-SAID-S1 | 24 | 9.7 | 90 | 1500 | 1500 |
Non-metallic Armored, Loose Tube Stranded
| Cable Type | Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Nominal Pulling Force (N) | Nominal Crush Resistance (N/10cm) |
|---|---|---|---|---|---|
| IFC-24-FAD-S1 | 24 | 9.7 | 78 | 1500 | 1500 |
| IFC-24-SAD-S1 | 24 | 8.9 | 72 | 2000 | 1500 |
| IFC-24-FGD-S1 | 24 | 9.8 | 80 | 1500 | 1500 |
| IFC-24-SGD-S1 | 24 | 9 | 73 | 2000 | 1500 |
Central Tube Structure Cable
| Cable Type | Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Nominal Pulling Force (N) | Nominal Crush Resistance (N/10cm) |
|---|---|---|---|---|---|
| IFC-24-CAD-S1 | 24 | 7 | 48 | 1000 | 1500 |
| IFC-24-CGD-S1 | 24 | 7 | 50 | 1000 | 1500 |
