Description:
Fiber optic cables optimized for Fiber-to-the-X (FTTx) applications, providing flexible and robust connectivity.

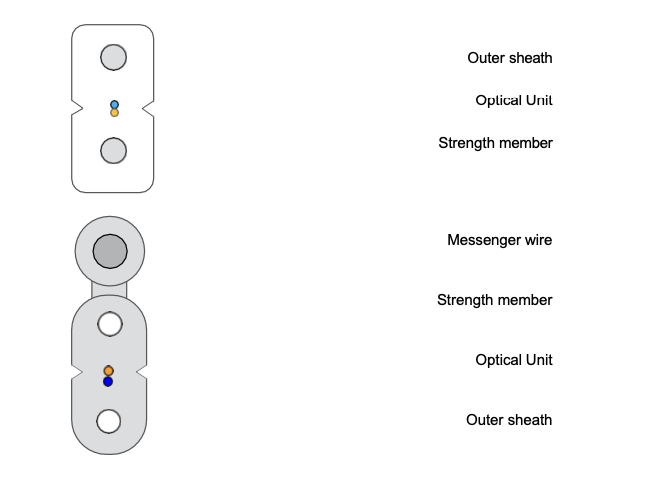

Cross Section Drawing:
Features:
- Colored fiber used as optical unit.
- Steel wire as strength member.
- Low friction coefficient ≤0.25 for figure-8 drop cable, and low friction coefficient ≤0.15 for indoor drop cable.
- Sheath color according to customer requirement.
- Could be used for indoor/outdoor distribution.
- Easy and convenient installation and connection.
- Good flame retardant, mechanical and environmental performance
- In accordance with IEC, ITU and EIA standards.
Specifications:
| Cable Type | Fiber Count | Nominal diameter (mm) | Nominal Weight (kg/km) | Nominal pulling force (N) | Nominal Crush Resistance (N/10cm) |
|---|---|---|---|---|---|
| IFC-1-DC-S3 | 1 | 1.6*2.0 | 7 | 100 | 1000 |
| IFC-1-FDC-S3 | 1 | 2.0*5.3 | 20 | 600 | 2200 |
