Description:
Fiber optic cables optimized for Fiber-to-the-X (FTTx) applications, providing flexible and robust connectivity.

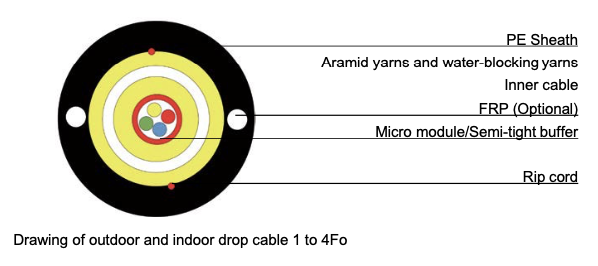

Cross Section Drawing:
Features:
- Easy to access the fibers in semi-tight buffer (1FO) or micro module without any tools
- Micro module with 2/4 fibers, or semi-tight buffer with 1 fiber inside
- 2 parallel FRP as strength members (Optional)
- LSZH for inner cable sheath, PE for outer sheath
- Good mechanical and environmental performance
- Indoor or outdoor installation
- In accordance with IEC, ITU, and EIA standards
Specifications:
| Cable Type | Fiber Counts | Nominal OD(mm) | Nominal Weight (kg/km) | Pulling Force (N) | Nominal Crush Resistance (N/10cm) |
|---|---|---|---|---|---|
| IFC-1/2/4G.657A2-DC-S1 | 1/2/4 | 5.2 | 22 | 800 | 2000 |
