Description:
Compact fiber optic cables designed for micro-duct and high-density applications.

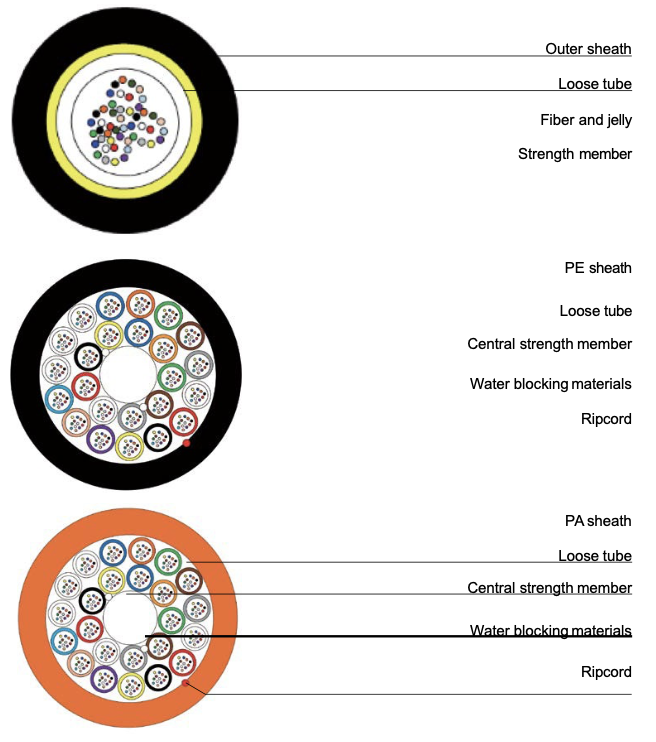

Cross Section Drawing:
Features:
- S-Z stranded (up to 288 fibers) or central tube structure (up to 24 fibers)
- Aramid yarns, glass yarn, or other reinforcement as strength member
- Lightweight and small size for easy installation
- Good water penetration, mechanical, and environmental performance
- PE, PA, or LSZH sheath materials
- In accordance with IEC, ITU, and EIA standards
Specifications:
Blow Fiber Unit
| Cable Type | Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Nominal Pulling Force (N) | Nominal Crush Resistance (N/10cm) |
|---|---|---|---|---|---|
| IFC-24-FD-S1 | 24 | 9.5 | 75 | 1000 | 1000 |
| IFC-24-SD-S1 | 24 | 8.7 | 70 | 1500 | 1000 |
Central Tube Structure
| Cable Type | Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Nominal Pulling Force (N/10cm) |
|---|---|---|---|---|
| IFC-48-CMD-S1 | 48 | 4.1 | 15 | 300 |
Loose Tube Stranded (PE Sheath)
| Cable Type | Fiber Count | Fiber type | Nominal Diameter (mm) | Nominal Weight (kg/km) | Nominal Pulling Force (N) | Nominal Crush Resistance (N/10cm) |
|---|---|---|---|---|---|---|
| IFC-24-FMD-S1 | 24 | 250±10μm | 5 | 25 | 150 | 500 |
| IFC-288 -FMD-S1 | 288 | 200±10μm | 8 | 62 | 800 | 500 |
| IFC-288 -FMD-S1 | 288 | 250±10μm | 10 | 98 | 1500 | 700 |
Loose Tube Stranded (PA Sheath)
| Cable Type | Fiber Count | Fiber type | Nominal Diameter (mm) | Nominal Weight (kg/km) | Nominal Pulling Force (N) | Nominal Crush Resistance (N/10cm) |
|---|---|---|---|---|---|---|
| IFC-288-FMD-S6 | 24 | 200±10μm | 8 | 66 | 800 | 500 |
| IFC-288-FMD-S6 | 288 | 250±10μm | 10 | 103 | 1500 | 700 |
| IFC-288-FMD-S6 | 288 | 250±10μm | 10 | 103 | 1500 | 700 |
